Know the Structure of your Elevator:

Elevator Core Components & Functions:

Control Panel (System): The central computer brain that processes user inputs, coordinates all elevator operations, manages car assignments, and optimizes traffic flow.
Traction Machine: The powerful electric motor and drive mechanism (including the sheave/pulley) that moves the elevator car via steel ropes.
Speed Governor (Limiter): A critical safety device that constantly monitors car speed. If excessive downward speed is detected, it triggers the safety brake.
Car (Cabin): The passenger compartment that transports people and goods vertically within the hoistway (shaft).
Guide Rails: Precision-installed vertical tracks running the length of the hoistway. The car and counterweight rollers move along these rails, ensuring smooth, stable travel and alignment.
Safety Brake (Overspeed Governor Actuator): Mechanical clamps attached to the car frame. Activated only by the Speed Governor, they grip the guide rails to stop the car abruptly in an overspeed situation.
Hoistway Door (Floor Door): The door located at each landing (floor level) of the building. It interlocks with the car door and only opens when the car is correctly parked at that floor.
Buffers (Bumpers): Energy-absorbing devices (spring or hydraulic) located at the bottom of the hoistway pit. They safely stop a descending car or counterweight in the rare event it travels beyond its normal limits.
Call Buttons & Indicators:
- Call Buttons: Located on landings and inside the car to request service or select a destination floor.
- Indicators: Display the car's current position, direction of travel (up/down arrows), and sometimes car assignment.
Door Operator: The motorized mechanism (on the car) that opens and closes both the car doors and the interconnected hoistway doors, incorporating safety sensors.
Counterweight: A heavy frame (typically weighing the car's weight + ~50% of its rated load capacity) suspended from the opposite end of the traction ropes. It balances the load, significantly reducing the energy required by the traction motor.

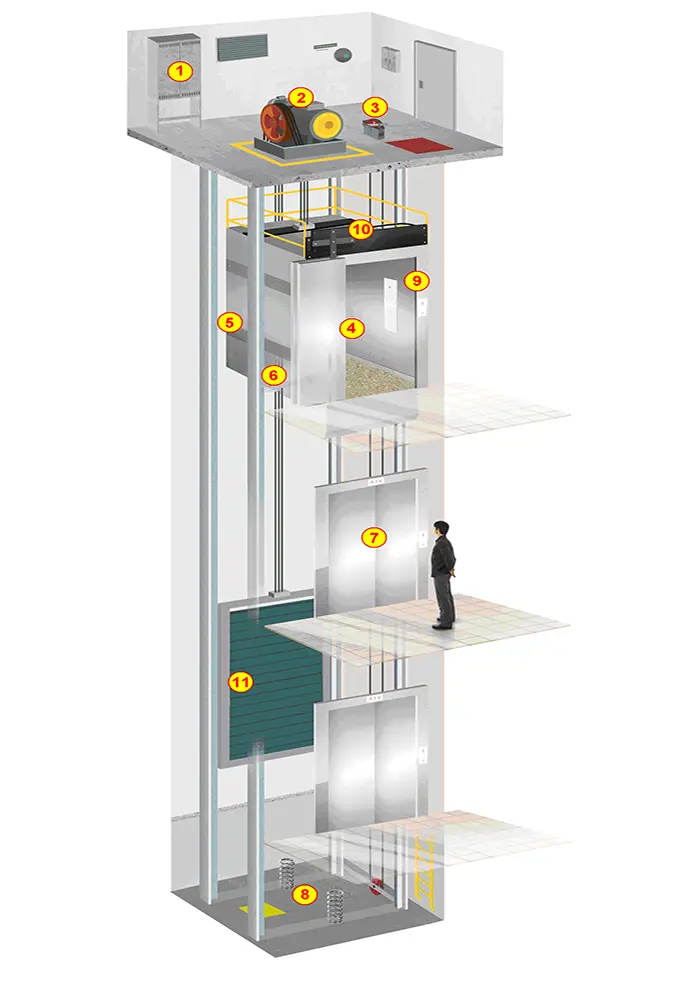

Take a moment next time you step into an elevator cabin. A few buttons, a silent hum, and suddenly you’re aloft—rising or descending without a single visible pulley or engine in plain sight. Yet behind those smooth rides lies a marvel of mechanical and electrical engineering, as revealed in the photograph above. Let’s pull back the curtain and explore the invisible engine that makes vertical travel feel like magic.

Counterweight & Car: The Perfect Balance

In the photo, you see the elevator cabin (the metal box you stand in) directly connected via steel cables to a hefty counterweight. This counterweight typically equals about 40–50% of the car’s maximum loaded weight. By balancing most of the car’s weight, the system slashes the power the motor needs—much like balancing a seesaw, the motor only overcomes friction and the difference in load, not the entire mass every time.

Steel Cables & Traction Sheave

Those thick steel ropes you spot loop over a large grooved pulley (the traction sheave) atop the shaft. When the motor turns this sheave, one side of the cable pulls the car up while the other side lets the counterweight descend, and vice versa. Multiple cables ensure redundancy—if one cable ever failed (an extremely rare event), the others would still hold the car securely.

The Electric Motor & Braking System

In the upper right of the image, the traction motor hides inside a yellow casing. Modern elevators use high‑torque AC motors paired with variable‑frequency drives (VFDs) to deliver exceptionally smooth acceleration and deceleration.
Beneath that, an emergency brake is quietly resting on the shaft’s structural steel. If power is lost or if the car overspeeds, this fail‑safe brake clamps onto the sheave or guide rails, instantly halting motion and keeping passengers safe.

Guide Rails & Roller Carriages

On either side of the car and the counterweight are vertical guide rails—solid steel tracks that prevent swaying and keep the car perfectly aligned. Attached to the corners of the car are roller carriages (not visible in the photo), which glide smoothly up and down these rails, minimizing friction and vibration.

Control Systems: Brain of the Operation

Although you don’t see it in the shot, housed in a control room is the computerized heart that orchestrates every move. It decides which floor to serve next, manages door open/close timings, and interfaces with safety sensors. Thanks to real‑time feedback from level sensors and door interlocks, the car always stops precisely at floor level and only moves once doors are fully closed.

Overspeed Governors & Safety Buffers

Hidden further down in the shaft are two more guardians of safety:

Overspeed governor: If the car drops faster than its rated speed, centrifugal forces in this device trigger the emergency brakes.
Buffers: At the bottom of both the car and the counterweight, hydraulic or spring buffers absorb residual energy in the unlikely case of an over‑travel, cushioning the impact gently.
